| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | wooden reel + wooden cases | Delivery Time : | one week |
| Payment Terms : | L/C, T/T |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 6*1.0 |
|
Detail Information |
|||
| Material: | 304, 316, 316L, 317L, 321, 347, 904L, 6 Mo, Monel 400, Nickel 200, Inconel 600, Inconel 625, Inconel 825, Hastelloy C22, Hastelloy C276, Duplex, Super Duplex, Copper, Cu-Ni 90/10 | Sheath Material: | PVC, TCR PVC, FR PVC, HFFR TPU, HFFR PE, HDPE, MDPE, LDPE, XLPE |
|---|---|---|---|
| Product Name: | Multi-core Coiled Tubing | Standard: | ASTM A269 |
| Highlight: | ASTM A269 Welded Multi Core Tube,TP304L Multi Core Tube,TCR PVC Multi Core Tube |
||
Product Description

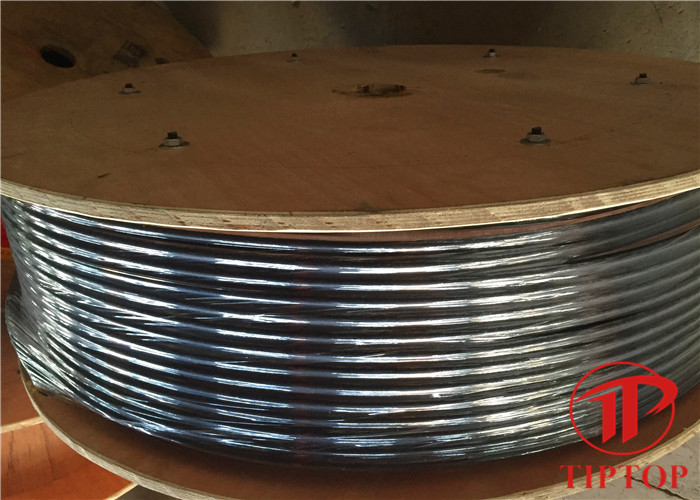

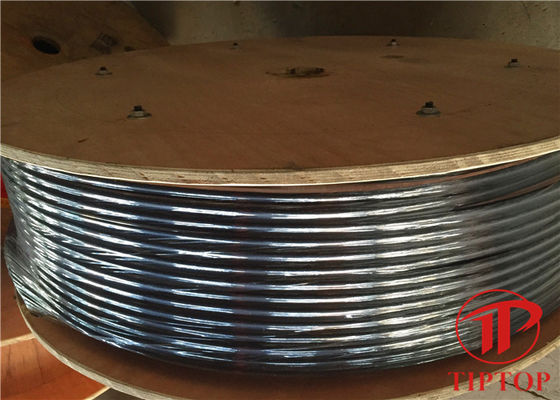

Marine use ASTM A269 Tp316L / 304L Stainless Steel alloy steel seamless Welded Super Long Multi Core Tube for Marine is bundled together for easier operation, which is used in shipbuilding, offshore plants and etc. to transport liquid, gas or electricity. It can be provided from type 1 core to 8 cores.
Materials available:
304, 316, 316L, 317L, 321, 347, 904L, 6 Mo, Monel 400, Nickel 200, Inconel 600, Inconel 625, Inconel 825, Hastelloy C22, Hastelloy C276, Duplex, Super Duplex, Copper, Cu-Ni 90/10
Sheath materials: PVC, TCR PVC, FR PVC, HFFR TPU, HFFR PE, HDPE, MDPE, LDPE, XLPE
Features: Bright Annealed for finished tube, high cleanness and high precision of size and inside&outside surface, good mechanical properties, excellent cold bending ability, high temperature resistant and anti-oxidation. We also provide polishing and pipe cutting service
|
No. |
Tube Size |
Overall Diameter |
Sheath Thickness |
Bundle Weight |
Max. Pressure |
|
1 |
6 x 1.0 x 1 |
8 |
1.0 |
0.15 |
Working:180 Bar |
|
2 |
6 x 1.0 x 2 |
20 |
2.0 |
0.60 |
|
|
3 |
6 x 1.0 x 3 |
21 |
2.0 |
0.75 |
|
|
4 |
6 x 1.0 x 4 |
24 |
2.0 |
0.82 |
|
|
5 |
6 x 1.0 x 5 |
25 |
2.0 |
0.90 |
|
|
6 |
6 x 1.0 x 6 |
27 |
2.0 |
1.04 |
|
|
7 |
6 x 1.0 x 7 |
27 |
2.0 |
1.15 |
|
|
8 |
6 x 1.0 x 8 |
32 |
2.2 |
1.40 |
|
|
9 |
8 x 1.0 x 1 |
10 |
1.0 |
0.28 |
|
|
10 |
8 x 1.0 x 2 |
24 |
1.8 |
0.89 |
|
|
11 |
8 x 1.0 x 3 |
26 |
2.0 |
1.12 |
|
|
12 |
8 x 1.0 x 4 |
28 |
2.0 |
1.33 |
|
|
13 |
8 x 1.0 x 5 |
31 |
2.0 |
1.67 |
|
|
14 |
8 x 1.0 x 6 |
34 |
2.0 |
2.00 |
|
|
15 |
8 x 1.0 x 7 |
34 |
2.0 |
2.15 |
|
|
16 |
10 x 1.0 x 1 |
40 |
2.2 |
2.6. |
|
|
17 |
10 x 1.0 x 2 |
13 |
1.0 |
0.34 |
|
|
18 |
10 x 1.0 x 3 |
28 |
1.8 |
1.18 |
|
|
19 |
10 x 1.0 x 4 |
31 |
2.0 |
1.60 |
|
|
20 |
10 x 1.0 x 5 |
34 |
2.0 |
1.97 |
|
|
21 |
10 x 1.0 x 6 |
37 |
2.0 |
2.20 |
|
|
22 |
10 x 1.0 x 7 |
40 |
2.0 |
2.40 |
|
|
23 |
10 x 1.0 x 8 |
40 |
2.0 |
2.52 |
|
|
24 |
10 x 1.0 x 9 |
48 |
2.5 |
3.20 |
|
|
25 |
12 x 1.0 x 1 |
14 |
1.0 |
0.41 |
|
|
26 |
12 x 1.0 x 2 |
34 |
2.0 |
1.35 |
|
|
27 |
12 x 1.0 x 3 |
36 |
2.0 |
1.96 |
|
|
28 |
12 x 1.0 x 4 |
39 |
2.0 |
2.37 |
|
|
29 |
12 x 1.0 x 5 |
43 |
2.0 |
2.70 |
|
|
30 |
12 x 1.0 x 6 |
47 |
2.0 |
3.00 |
|
|
31 |
12 x 1.0 x 7 |
47 |
2.0 |
3.14 |
|
|
32 |
12 x 1.0 x 8 |
55 |
2.5 |
3.90 |
