Detail Information |
|||
| Material: | Inconel 625 | Technique: | Cold Drawn |
|---|---|---|---|
| Standard: | ASTM B704 | Processing Type: | Seamless |
| OD: | 1/4 | Thickness: | 0.02,0.028,0.035,0.049,0.065.0.083 |
| Highlight: | 1/4 Oil Well Coiled Tubing,Inconel 625 Oil Well Coiled Tubing,ASTM B704 Coiled Tubing |
||
Product Description

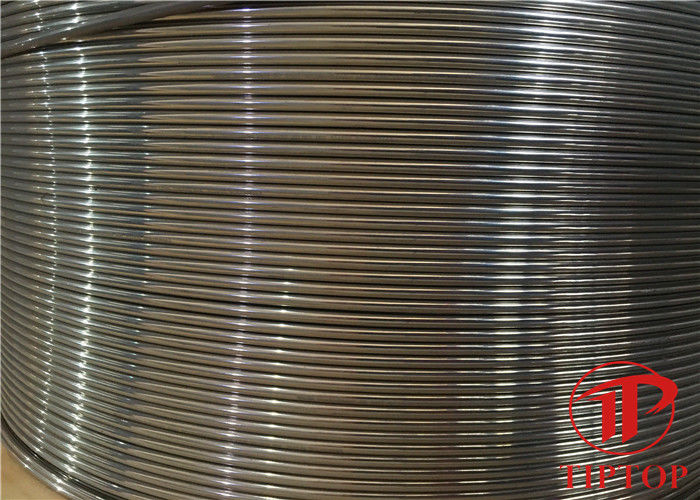

1/4" Inconel 625 ni-cr hydraulic control line (coil) is an Austenitic super alloy with nickel as the main component. Originated from the strengthening effect of molybdenum and niobium solid solutions contained in nickel-chromium alloy, it has ultra-high strength and special anti-fatigue properties from low temperature to 1093℃, and is widely used in aviation industry.
At the same time, the alloy has high formability and is easier to weld than many nickel alloys. The alloy is resistant to intergranular corrosion even when welded. From low temperature to 980℃, it has good tensile and fatigue properties, and it is resistant to stress corrosion under salt spray atmosphere.
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.
Chemical Composition:
| composition,% | |||||||||||||||
| Material | Standard | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | Fe | Al | Ti | Cb+Ta |
| 625 | ASTM B704 | 0.10 | 0.50 | 0.015 | 0.015 | 0.50 | min 58.0 | 20.0-23.0 | 8.0-10.0 | ... | ... | 5.0 | 0.4 | 0.40 | 3.15-4.15 |
| 825 | 0.05 | 1.00 | ... | 0.030 | 0.50 | 38.0-46.0 | 19.5-23.5 | 2.5-3.5 | ... | 1.5-3.0 | min 22.0 | 0.2 | 0.6-1.2 | ... | |
Size Chart:
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| * OD: Up to 1 inch | |||||
Hydrostatic test for each coil and conform to ASTM standards and requested specifications.
The specification and length per coil can be customized according to customer’s requirements.
Application:
Down hole tubes
Subsea umbilical’s
Process constructions
General control system
Steam supply lines
Gas transport lines
Instrumentation
