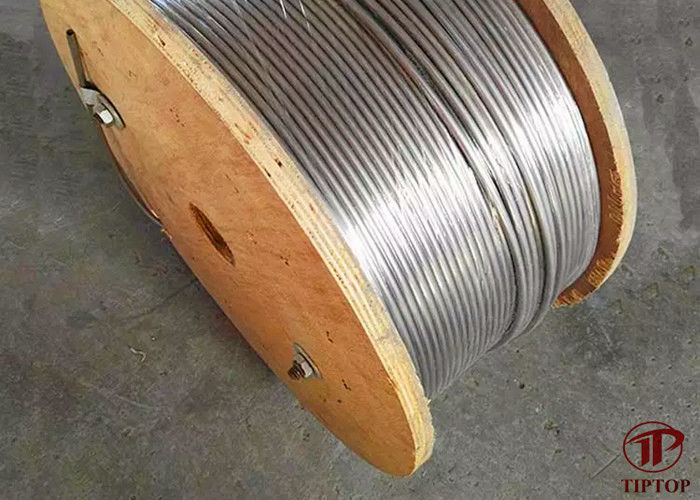

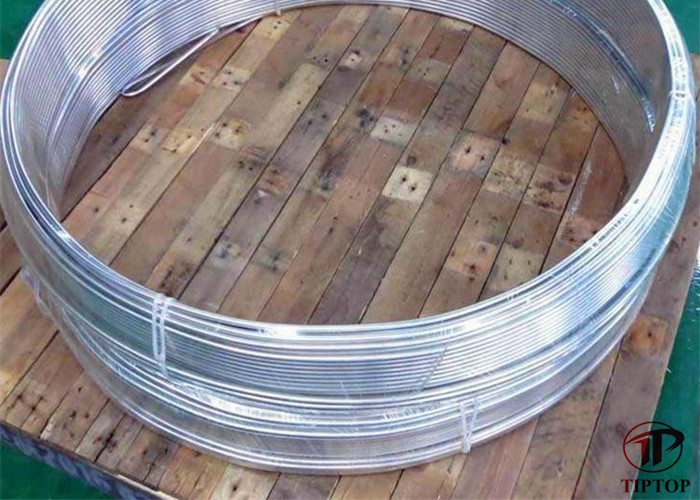

Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Seaworthy wooden cases or wooden reels | Delivery Time : | One Week |
Payment Terms : | T/T | Supply Ability : | 1000 tons per month |
Place of Origin: | CHINA | Brand Name: | TIPTOP |
---|---|---|---|
Certification: | ISO | Model Number: | 1 / 8 * 0.035 |
Detail Information |
|||
Material: | Incoloy 825 | Working Pressure: | 60-120 Mpa |
---|---|---|---|
Length: | Customized | Processing: | Bending, Welding, Cutting |
WT: | 0.02"-0.083” | Product: | Incoloy 825 SS Hydraulic Control Line Tubing 0.02"-0.083" WT |
High Light: | Incoloy 825 SS Control Line Tubing,60Mpa Hydraulic Control Line Tubing,SS Hydraulic Incoloy 825 Tube |
Product Description
Incoloy 825 alloy hydraulic control line tubing is resistant to corrosion of sulfuric acid and phosphoric acid. It is also resistant to intergranular corrosion after welding. In the environment of chloride ion medium, Incoloy 825 alloy hydraulic control line will not produce chloride stress corrosion cracking, and it also has excellent resistance to pitting and crevice corrosion. Therefore, Incoloy 825 alloy hydraulic control line has excellent stress corrosion resistance in sodium chloride solution, high strength and good toughness.
Composition
Material | UNS | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | Fe | Al | Ti | Cb+Ta |
825 | N08825 | 0.05 | 1.00 | ... | 0.030 | 0.50 | 38.0-46.0 | 19.5-23.5 | 2.5-3.5 | ... | 1.5-3.0 | min 22.0 | 0.2 | 0.6-1.2 | ... |
Specifications
OD | WT | Materials | Standard | Working Pressure | Length |
1/8" | 0.02", 0.028", 0.035" | Incoloy 825 (UNS N08825) | ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02", 0.028", 0.035", 0.049" | ||||
1/4" | 0.02", 0.028", 0.035", 0.049", 0.065", 0.083" | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1" |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
