3/8 Austenitic Ss Oil Gas Coiled Tubing Pipe

Product Description

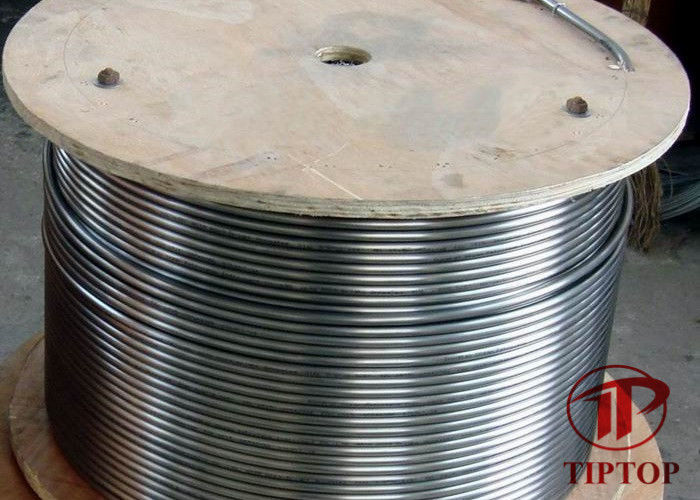

3 / 8 * 0.065 Austenitic Stainless Steel Coiled Control Line Tubing for Oil & Gas

We manufacture seam welded and redrawn, seam welded and floating plug redrawn and seamless tube products. The standard grades are 316L, alloy 825 and alloy 625. Other grades of stainless steel in duplex and superduplex and nickel alloy are available on request. Tubing can be supplied in the annealed or cold worked condition.

316/316L is the most commonly used austenitic stainless steel in the chemical process industry. The addition of molybdenum increases general corrosion resistance, improves chloride pitting resistance and strengthens the alloy in high temperature service. Through the controlled addition of nitrogen it is common for 316/316L to meet the mechanical properties of 316 straight grade, while maintaining a low carbon content.

Instructions for 3/8”Hydraulic control line

The 3/8“ hydraulic control line is mainly used to inject chemicals into oil and gas wells. That is, the 3/8” hydraulic control line is connected to the downhole chemical injection valve, and the descaling is performed through the 3/8“ hydraulic control line and the chemical injection valve. Chemical agent is injected from the surface into the oil tube at a certain depth down the well, which effectively removes the scaling of the oil tube and ensures the normal production of oil and gas fields.

It can also be used for pressure control of surface ety valves and other surface valves, and various connection tubelines of large-scale equipment instrumentation control systems for oil and gas field drilling and oil production.

Our products have complete specifications and can meet all working conditions. The outer diameter range of control line tube we supply is from 1/8" to 1". The thickness range is from 0.02" to 0.118". All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' requirement details.

Hydrostatic test for each coil and conform to ASTM standards and requested specifications.

The specification and length per coil can be customized according to customer’s requirements.
